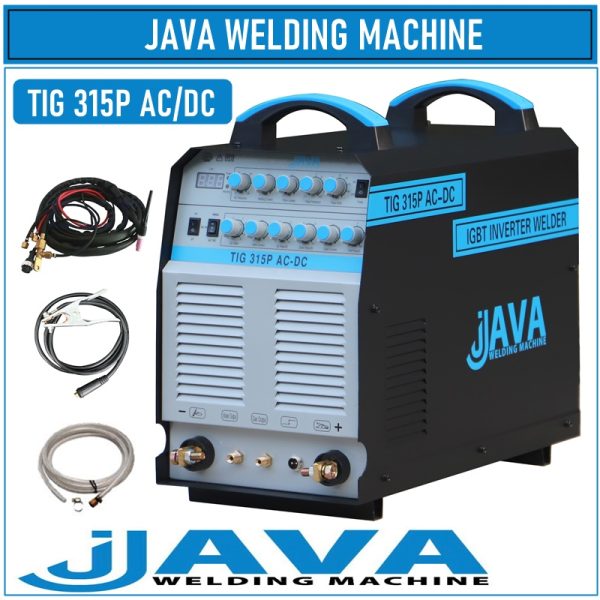

| Model | TIG 315P AC/DC |
| Input Voltage (V) | 3 PH 380V±15% |
| Frequency | 50/60Hz |
| Rated Input Current (A) | 21 |
| Rated Input Power Capacity (Kva) | 13.8 |
| Fuse | 40 |
| No-Load Voltage (V) | 85 |
| Output Current Range (A) | 15-315 |
| Duty cycle (%) | 60 |
| Power factor | 0.85 |
| Insulation Class | F |
| Protection Type (-) | IP21S |
| Pulse Frequency (Hz) | 0.2-315 |
| Pulse Duty (%) | 10 – 100 |
| Arc Staring | HF Vibration |
| AC Frequency | 60-300 |
| AC Balance | 20 – 100 |
| Up slow (S) | 0-10 |
| Down slope (S) | 0-10 |
| Post-Flow Time (S) | 0.5-20 |
| Pre-Flow Time (S) | 0.2-10 |
| Dimension (mm) | 565xx273x490 |
| Weight (Kg) | 23 |
Accessories
☑ Tig Torch Wp26V
☑ Earth Clamp
☑ Regulator Argon
☑ Welding Glasses
Suitable :
- Ferrous And Non Ferrous Metal (carbon steel, stainless steel & Alumunium Alloy,etc)
- Leght & Heavy Industry, Technical School
- Work With Generator
